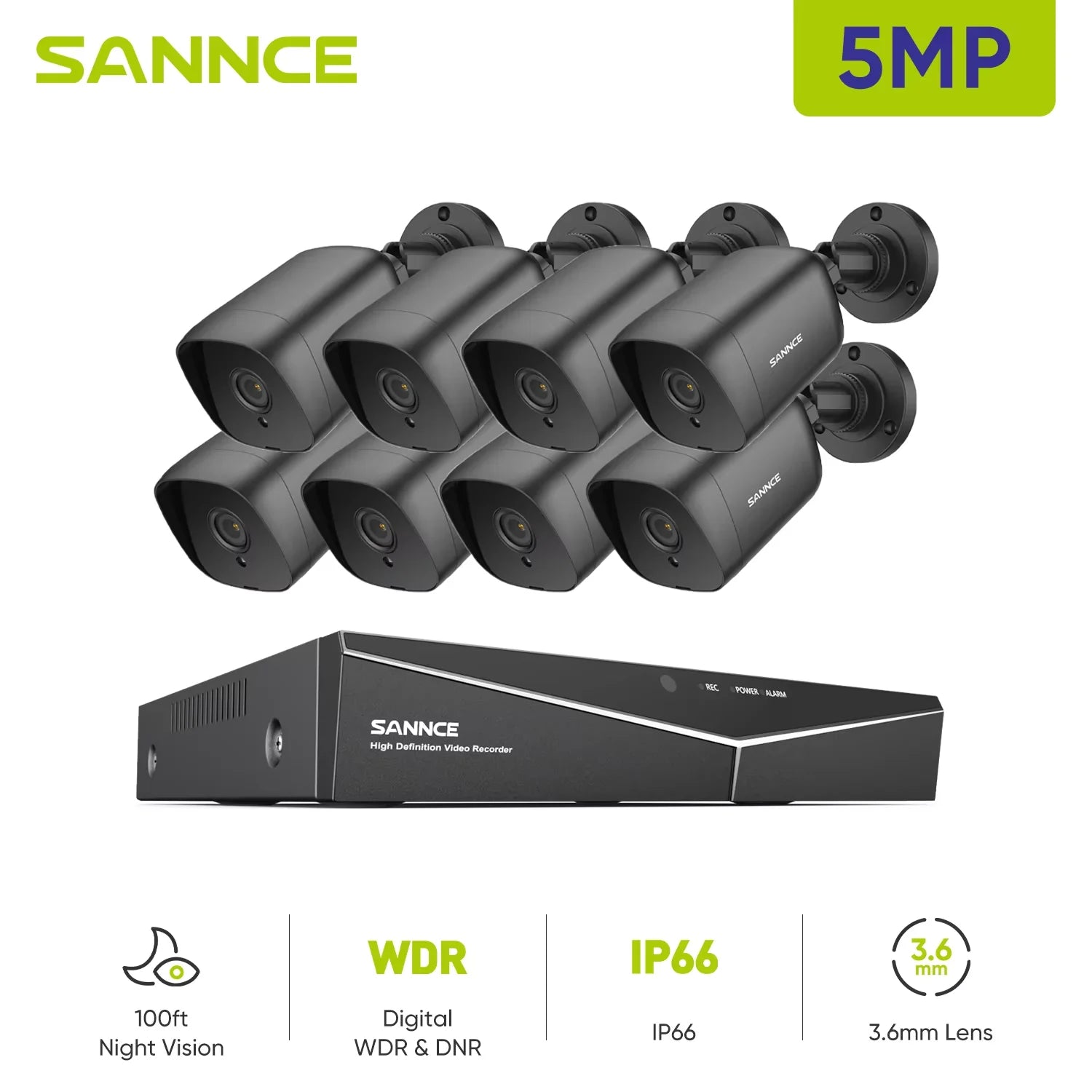

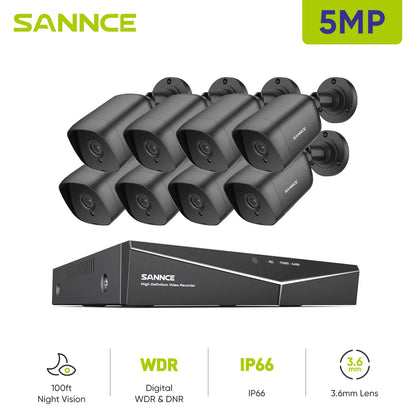

SANNCE 8CH 5MP DVR CCTV Surveillance System Kit Outdoor
SANNCE 8CH 5MP DVR CCTV Surveillance System Kit Outdoor
Couldn't load pickup availability
Elevate your security with the SANNCE 8CH 5MP DVR CCTV Surveillance System Kit Outdoor, delivering sharp detail and dependable monitoring for any property.
- 8-channel, 5MP encoding for crystal-clear footage and reliable playback, so every moment is captured with accurate color and detail.

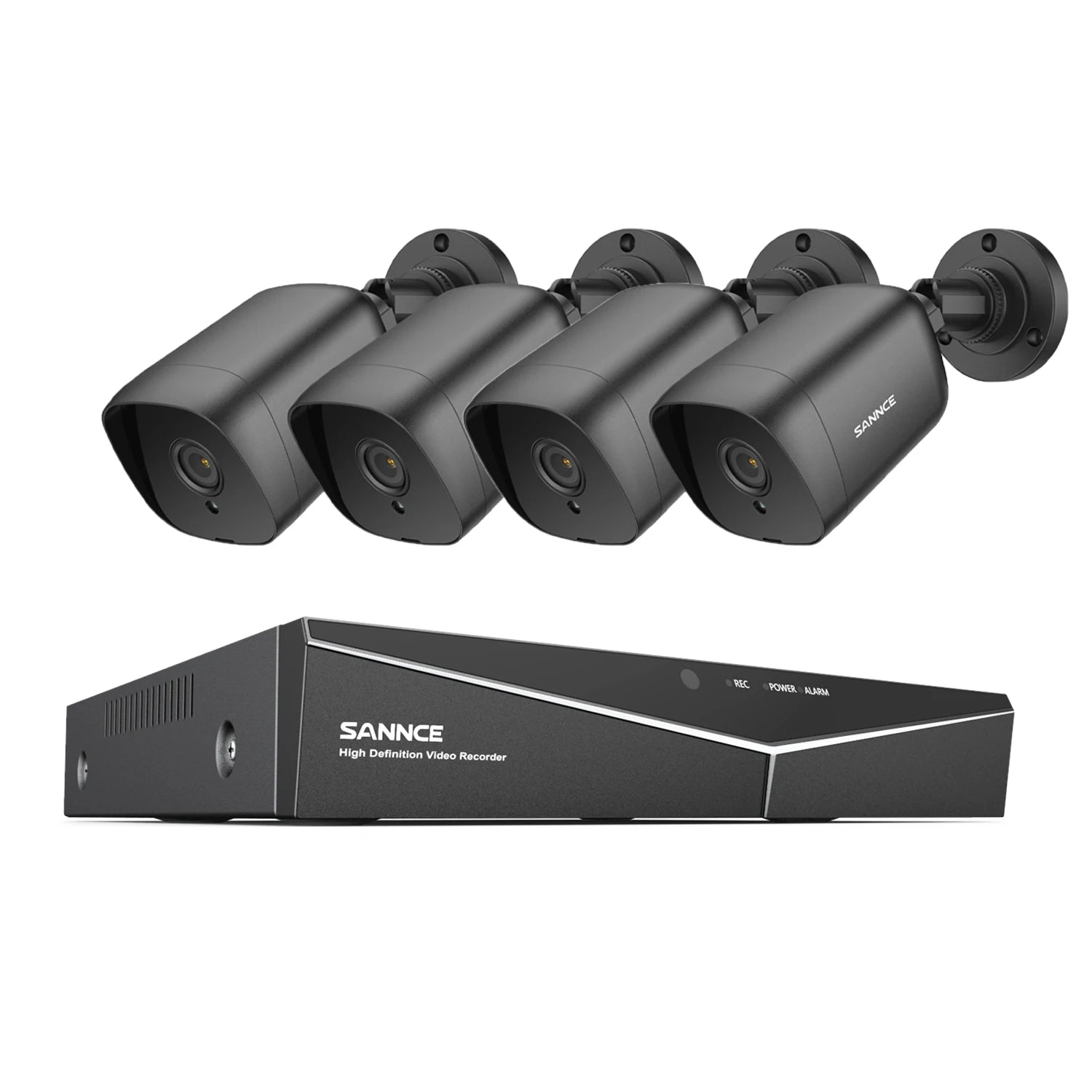

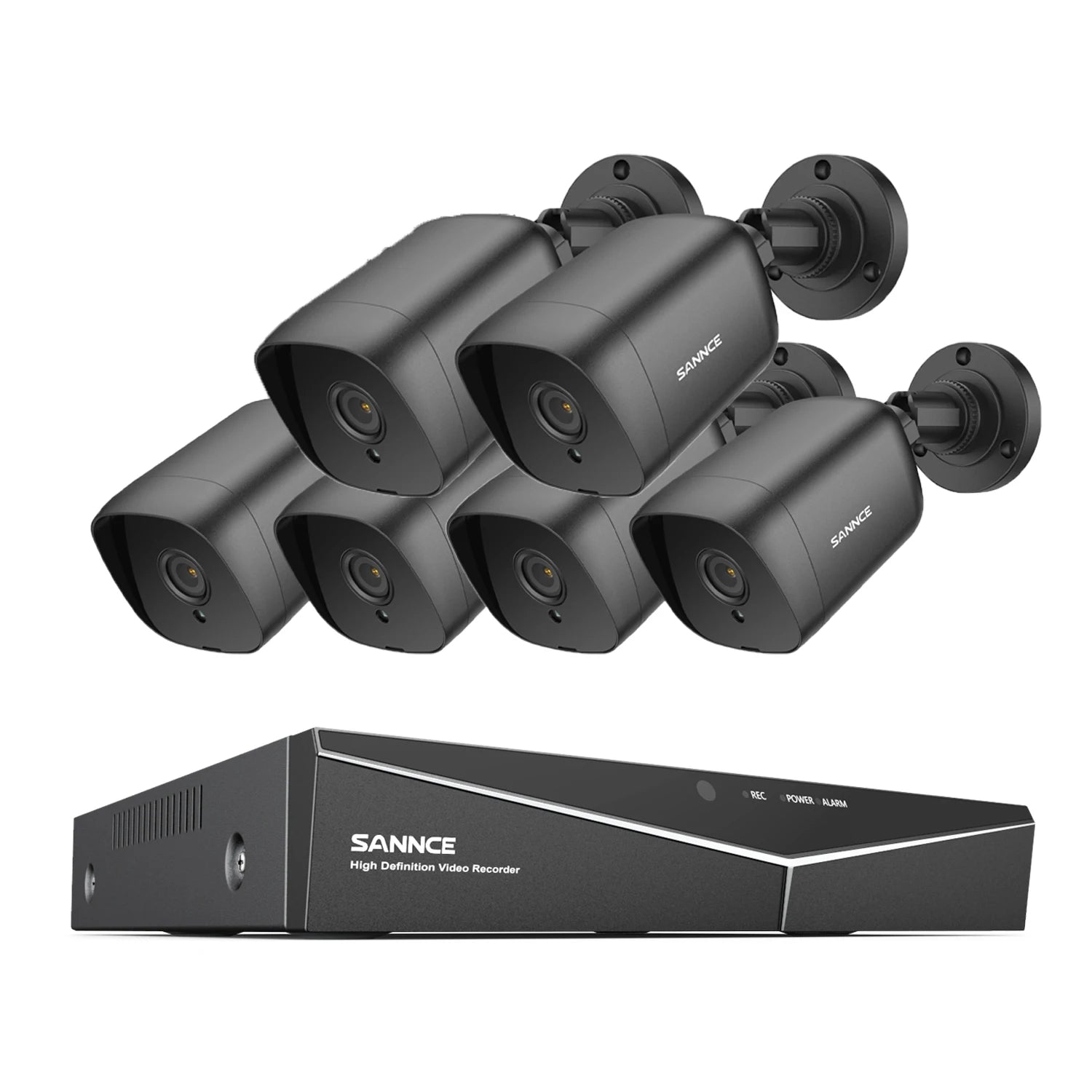

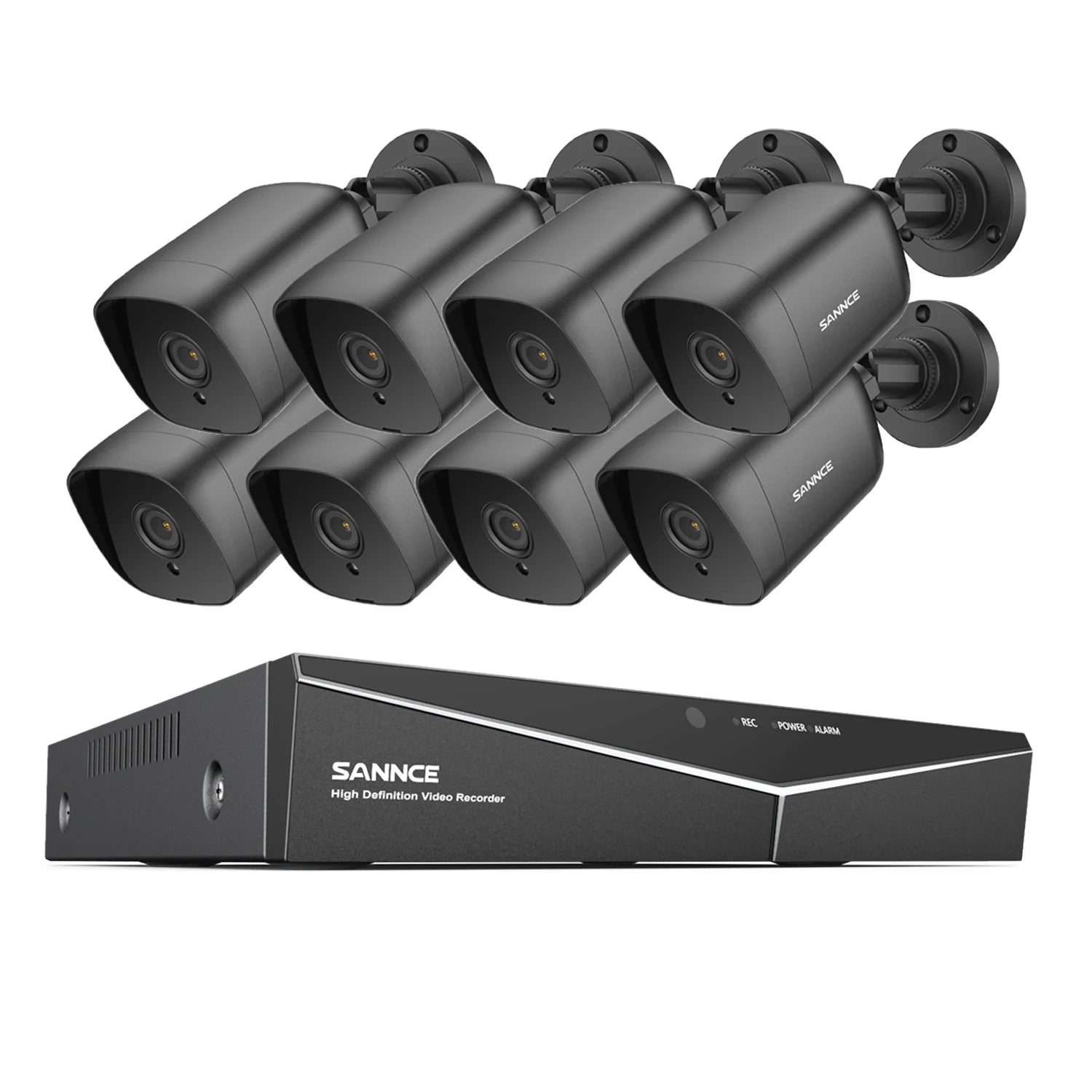

- Includes eight cameras and a versatile DVR setup, designed for outdoor environments and comprehensive coverage across entrances, yards, and perimeters.
- Flexible installation with long cable options—up to 30m and 18m lengths—so you can tailor wiring to your site layout.
- NTSC or PAL compatibility with CE certification, delivering dependable performance and broad compatibility with standard security workflows.

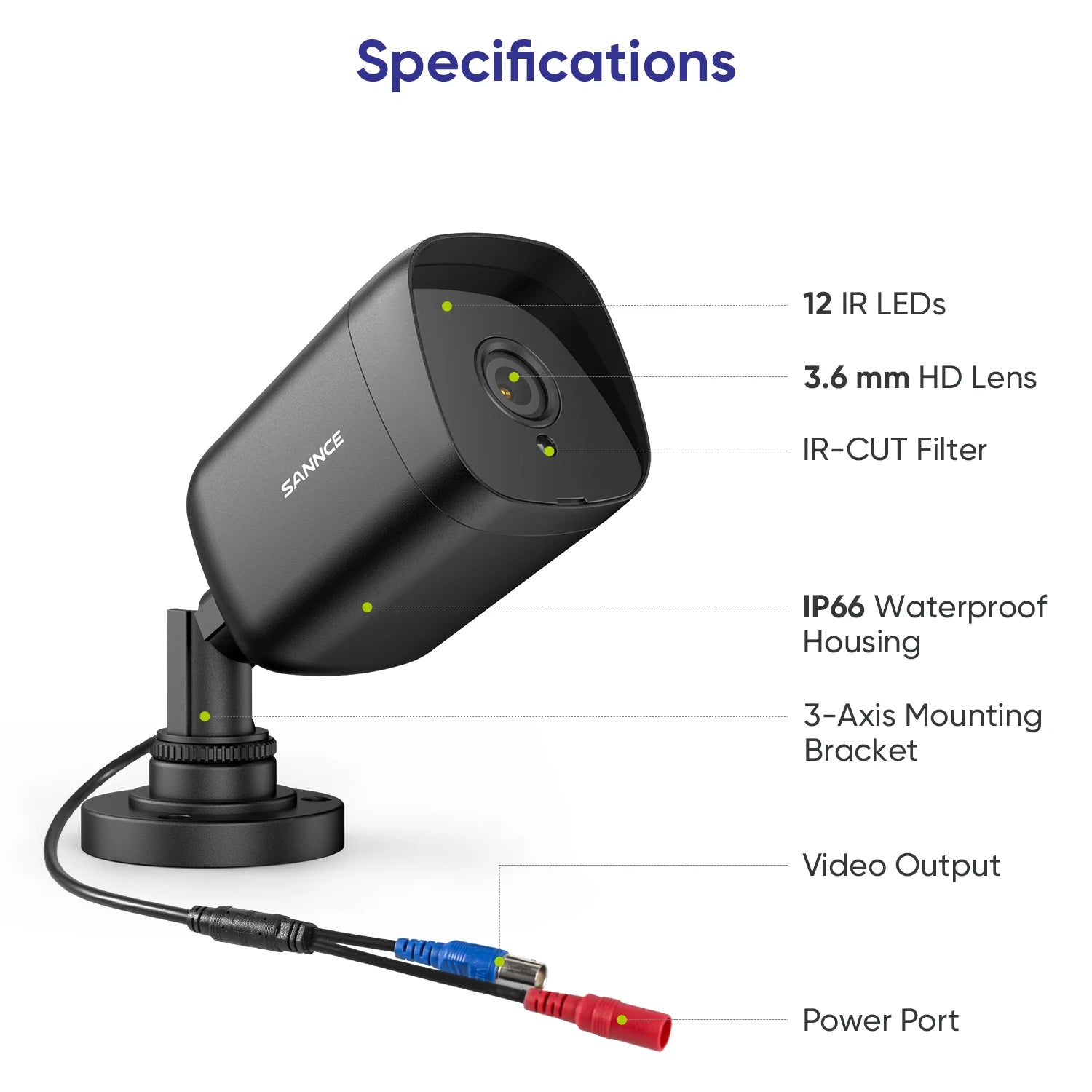

HD Camera | ||
Camera | Video Resolution | AHD 5MP(12.5&20 Frame) |
Signal system | PAL/NTSC | |
Image sensor | Progressive Scan CMOS | |

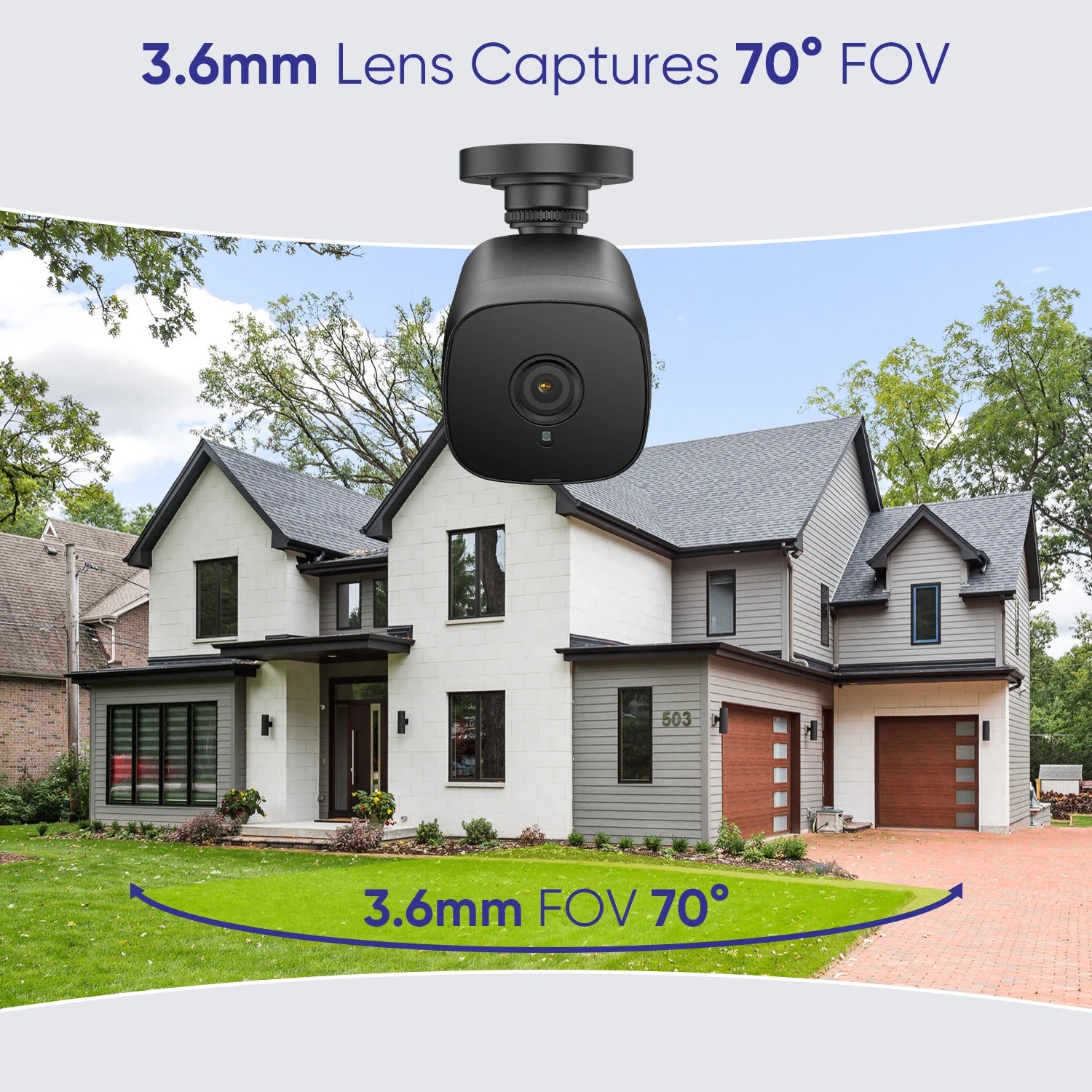

Lens | 3.6mm | |
Min.Illumination | 0.02Lux@(F1.2 AGC ON),0Lux with IR on | |
Angle of View | 70° | |
Number of Infra-Red LEDs | 12 | |
Night Vision Distance | Up to 100ft/30m | |
DNR | 3D DNR | |
Wide Dynamic Range | Digital WDR | |
IR Cut Filter | Yes | |
Video Output | HD BNCx1 | |
General | Housing | Plastic |
Color | Black | |
Operating Power | DC12V | |
Operating Temperature | -4 °F – 140 °F /-20 °C – 60 °C | |
Indoor/Outdoor | Indoor/Outdoor | |

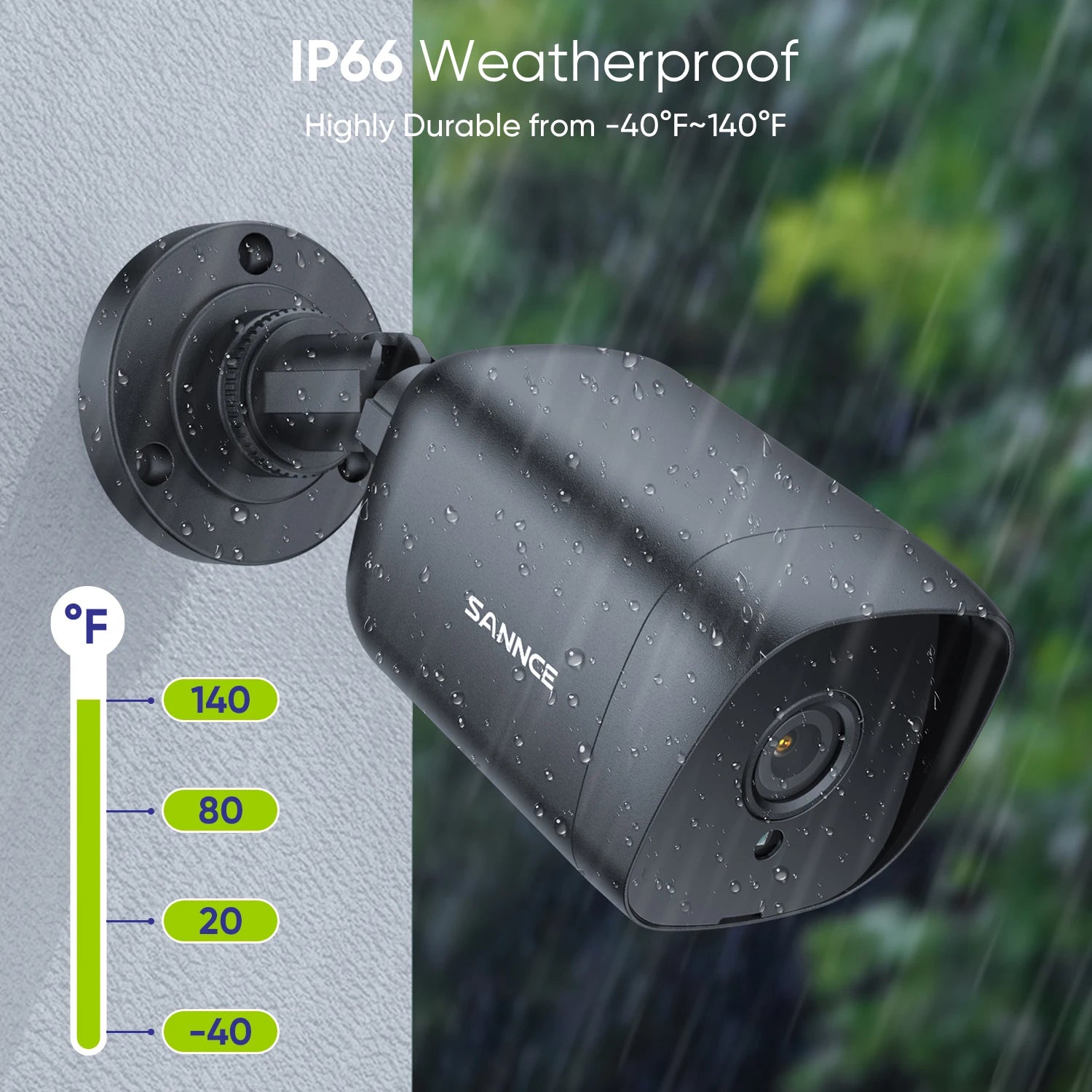

Weatherproof Rating | IP66 | |
Dimension (L x W x H) | 6.49” x2.36” x 2.36” / 165 x 60 x 60mm | |
Weight | 0.33lbs / 150g | |
DVR | ||
Video & Audio | Codec | H.264+ |
Video input | 8*BNC | |
HDMI output | 1*HDMI (MAX:1080P) | |
VGA output | 1*VGA (MAX:1080P) | |
Audio I/O | 2/1 | |
Encode | 8*5MN@15fps | |
Decode | 4*5MN@15fps | |
Multi-mode | Analog: 8*5MN@15fps; | |
Hybird: 8*5MN@15fps(analog)+4*1080P | ||
IP: 16*1080P；16*5MP | ||
Playback | 4CH (Analog mode) | |
Compression | G.711a | |
Intercom | Support | |
Hard Drive | HDD | 1*SATA interface |
HDD Capacity | Up to 8TB Capacity | |
Management | Record mode | Manual>Motion detection>Schedule |
Inquire mode | Inquire by Time/Calendar/Event/Channel | |
Storage mode | Sata HDD | |
Backup | Network, USB storage | |
External Interface | Ethernet port | 1*10/100Mbps Ethernet port, RJ45 port |
Alarm I/O | 0/0 | |
PTZ control | 1*RS485, Support for multiple PTZ protocol | |
USB Port | 2*USB2.0 ports | |
General | Power supply | 12V/2A |
Consumption | <10W(Without HDD） | |
Temperature | 0℃- + 55℃ | |
Humidity | 10% -90% RH | |
Dimension | 255(L)* 236mm(W)* 44mm(H) | |
Weight | Around 1KG | |
